How can outdoor LED screen resolution effect display?

Outdoor LED resolution p5 screen showing front and side view

The variety of outdoor LED screen resolution is huge...

What does P10, P5 mean? What is the best outdoor LED screen for solar powered billboards? How can viewing distance be optimised? Find out the answers to these questions and more here..

|

"Outdoor LED screen displays have been gaining popularity, owing to significant technological advancements such as better picture quality, and high brightness level."

Diagram showing Outdoor LED screen resolution SMD P4

SMD Outdoor LED Screens

“Surface-Mount Device”or SMD utilize red, green, and blue diodes mounted on top of each other in a single package. These clusters of single LED’s are able to display high LED resolution full colour output.

Consider some Pros & Cons:



  • High visual angle of 140° both from Horizontal & vertical perspectives.
  • SMD is more energy & heat efficient than DIP.
  • Lightweight thinner modules.
  • Maximum viewing distance is reduced by 25% compared with DIP of the same resolution.
  • More expensive to waterproof than DIP, making them more popular for indoor usage.

DIP or PID Outdoor LED Screens

“Dual In-line Package” or DIP are a combination of 3 LED’s to create RGB and hence full colour images. The combination of these three colours – red, green and blue allows LED screens to create millions of colours, including white. Fantastic for outdoor LED resolution displays.

Consider some Pros & Cons:



  • DIP screen modules are more affordable than SMD equivilents.
  • Slightly thicker and heavier than SMD modules.
  • Viewing distance is approx 25% better than SMD.
  • DIP have a better resistance for outdoor applications due to being easier to waterproof & the individual bulbs last longer than SMD.
|

"At present, increasing preference for LED displays in application areas, such as sports, entertainment, and traffic signage has fueled the market growth, as these displays offer various benefits such as low power, high brightness, and long shelf life"

Sanchit Goyal -Research Analyst at AMR

Outdoor LED screen billboards- Explained

Light Emitting Diodes (LEDs) actually emit light rather than reflect. Hence many times brighter than other technologies currently on the market.

Lets start with outdoor LED screen resolution. The smaller the space between LED’s, the higher the definition & quality of the image. Your eyes can detect pixelation at certain viewing distances.

Obviously there is more detail with a higher image quality. Ultimately there must be an acceptable level of definition for the final output. Remember this is not a TV in your living room. It is meant to communicate the advertised message clearly and efficiently outdoors.

Consider the unit brightness. For outdoor use, at least 2,000 cd/m² is required for most situations. If you are concerned about direct sunlight on the screen the higher-brightness types of up to 5,000 cd/m² cope even better.

The final factor is cost, not just the price. Finding a balance between cost & LED definition will give you the best ROI.

Consider an example: You want to install LED advertising screens around the perimeter of a Soccer field. Who will be viewing the screens?

Will it be viewed on a live TV broadcast? If so a P16 quality screen would display on TV acceptably. Yet P20 would be a much more affordable option and allow high impact viewing from those in the stadium.

So weighing these factors will let you make the best decision.

Gathering all such information will help you save a lot of money & give you the most for your advertising budget.

Summary

The most popular is our P10  LED screen (10mm between LED’s) & is fantastic for any outdoor advertising when the viewing distance is 10m or more. Make sure to get 240v powered models as the solar panels cannot run this all night.

If you really enjoy the green energy solar model then invest in our P16 (10mm between LED’s) The flexibility of roadside installation anywhere, without need for backup power, is really popular with our clients.

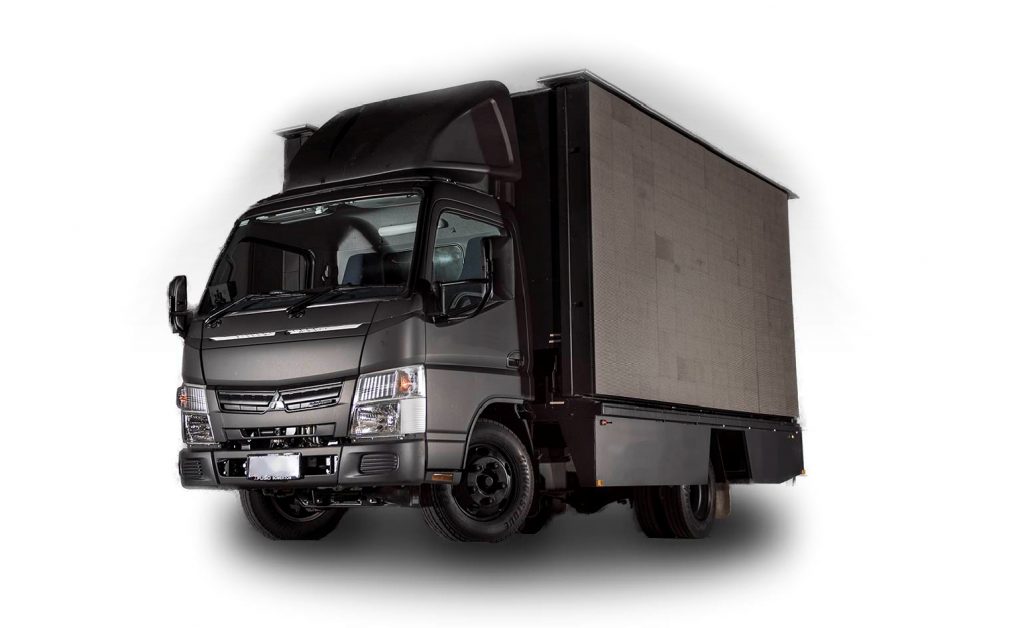

Mobile outdoor LED screens work well in all weather conditions and are the perfect addition to outdoor events or your business marketing budget.

Z
LED Resolution Dimensions Optimum Viewing Distance** Optimal powered by Solar or 240V
P5 5mm 7m 240V
P6 6mm 11m 240V
P8 8mm 14m 240V
P10 10mm 17m 240V
P16 16mm 21m Solar*
P20 20mm 24m Solar*
* Solar can power these outdoor LED resolution screens all night.
** Optimum viewing distance can be affected by various factors, including direct sunlight
